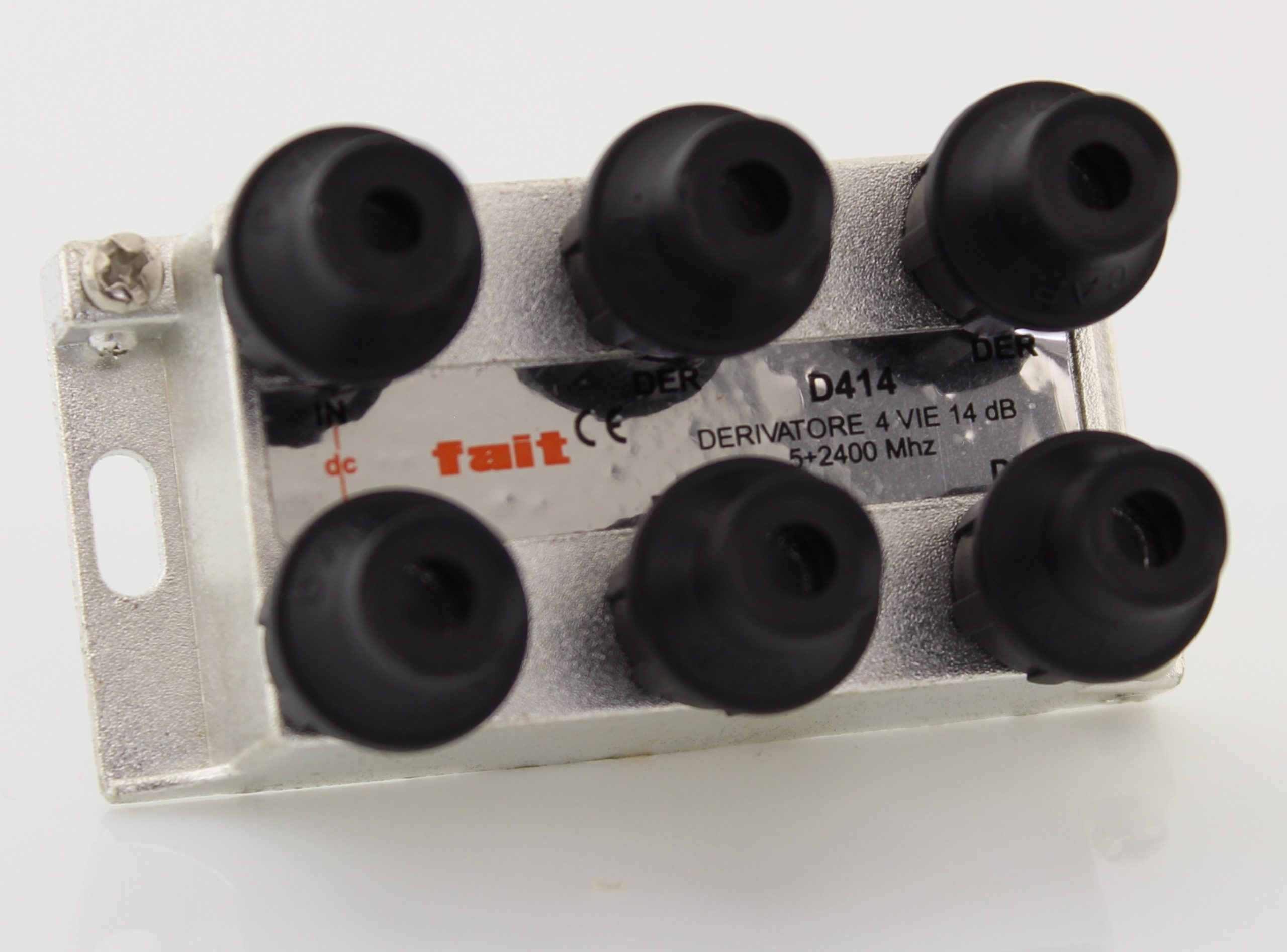

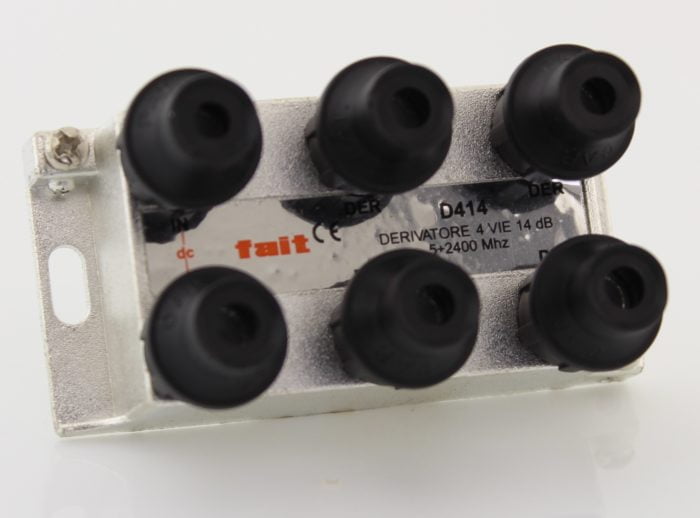

4-way line tap, 14dB

Type: line tap

Connectors: F female with CaP

Impedence: 75 Ohm

Material: diecasting

Finish: nickel-chromium

Unit weight: 73,7 g

Package: 10 pz.

Certifications: CE – RoHS

SKU: D414 Category: Tags: , , ,

Description

4 way TV/SAT line tap with F connectors with 14 dB loss.

Completed with 6 black CaP for installation with coax cable having diameter from 2 to 7 mm.

Bandwidth: 0 – 2400 MHz

Coaxial loss: 14 dB

Signal attenuation: < 2,8 dB @ 5 – 860 MHz; < 5 dB @ 950 – 2400 MHz

Average decoupling in-out: > 22 dB

Class A+ screening.

Compliant with EN 50083-4 and CEI 100-7 standards.
